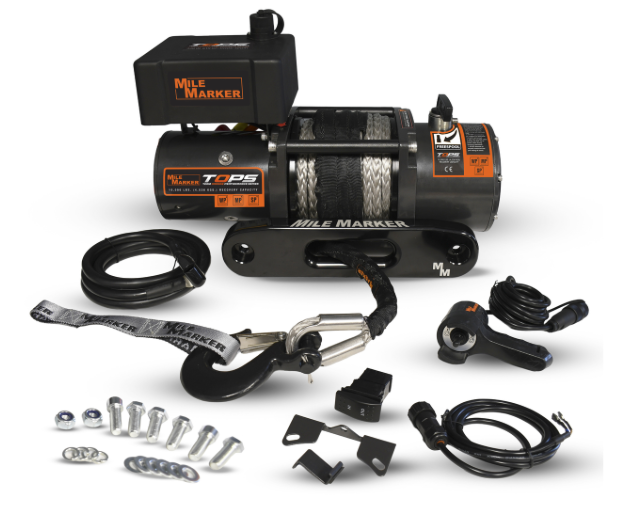

The Mile Marker Tops Performance Series 10K Short Drum Winch is designed for competitive rock crawling, with exceptional features like 1st or 4th layer flexibility, efficient operation, and meticulous engineering.
A lightweight winch rated for 10,000 LBS of pulling power, the Mile Marker Tops Performance Series 10k Short Drum Winch is ideal for intense competition.
The Mile Marker Tops Performance Series 10k Short Drum Winch are designed for the rigorous demands of rock crawling competitions and provide exceptional features for competitors by offering the flexibility to pull from the 1st or 4th layer. These lightweight winches operate efficiently with minimal power consumption, ensuring reliable performance.
Engineered with meticulous attention to detail, Mile Marker Tops Performance Series 10k Short Drum Winch includes soldered wire connections within the control box and a separate plug for dash mount controls, catering to the specific needs of racing enthusiasts.
The preferred choice for rock crawlers seeking top-notch equipment.
Note: Some vehicles may require a specific mounting system to be compatible.
Featuring:
| DUTY CYCLE | 1 min ON / 15 min OFF at 100% rated load, or until motor temperature reaches 250°F (121°C) | |||||||
| MOTOR | SERIES WOUND 12V DC, 4.9hp (3.6kW) | |||||||
| CIRCUIT PROTECTION | N/A | |||||||
| DRUM BARREL DIAMETER | 2.64 in (67mm) | |||||||
| DISTANCE BETWEEN FLANGES | 4.31 in (109 mm) | |||||||
| DRUM FLANGE DIAMETER | 6.0 in (152 mm) | |||||||
| WINCH LINE CAPACITY | MBL 18,078 lbf (8200 kgf) (80415 N) | |||||||
| WINCH LINE DIAMETER | .375 in (9.5 mm) | |||||||
| WINCH LINE LENGTH | 50 ft (15 m) | |||||||
| DRUM ROTATION DIRECTION | UNDERWOUND, CLOCKWISE | |||||||
| TOTAL CABLE LAYERS | 4 | |||||||
| WINCH HOOK | 7/16 in Grade 70 Clevis Slip Hook with Latch, WLL 3969 lbs (kg) MBS 35,000 lbs (15,875 kg) | |||||||
| FIRST LAYER PERFORMANCE | ||||||||
| LINE LOAD | CURRENT DRAW | LINE SPEED @ LOAD | DUTY CYCLE | |||||
| lbf | kgf | AMPS | ft/min | m/min | min/15min | |||
| 0 | 0 | 71 | 41 | 12.5 | 10:00 | |||
| 3100 | 1400 | 205 | 18 | 5.5 | 7:00 | |||
| 4200 | 1900 | 226 | 13 | 4 | 5:00 | |||
| 6600 | 3000 | 273 | 9 | 2.7 | 2:00 | |||
| 8200 | 3700 | 302 | 8 | 2.4 | 1:30 | |||
| 10000 | 4536 | 338 | 7 | 2.1 | 1:00 | |||
| PERFORMANCE BY LAYER | ||||||||
| DRUM LAYER | LINE LOAD | LINE SPEED @ RATED LOAD | NO LOAD LINE SPEED | |||||
| lbf | kgf | N | ft/min | m/min | ft/min | m/min | ||
| 1 | 10,000 | 4536 | 44482 | 7.0 | 2.1 | 41 | 12.5 | |
| 2 | 8,008 | 3632 | 35621 | 8.7 | 2.7 | 51 | 15.6 | |
| 3 | 6677 | 3029 | 29704 | 10.5 | 3.2 | 61 | 18.7 | |
| 4 | 5726 | 2598 | 25472 | 12.2 | 3.7 | 71 | 21.8 | |
