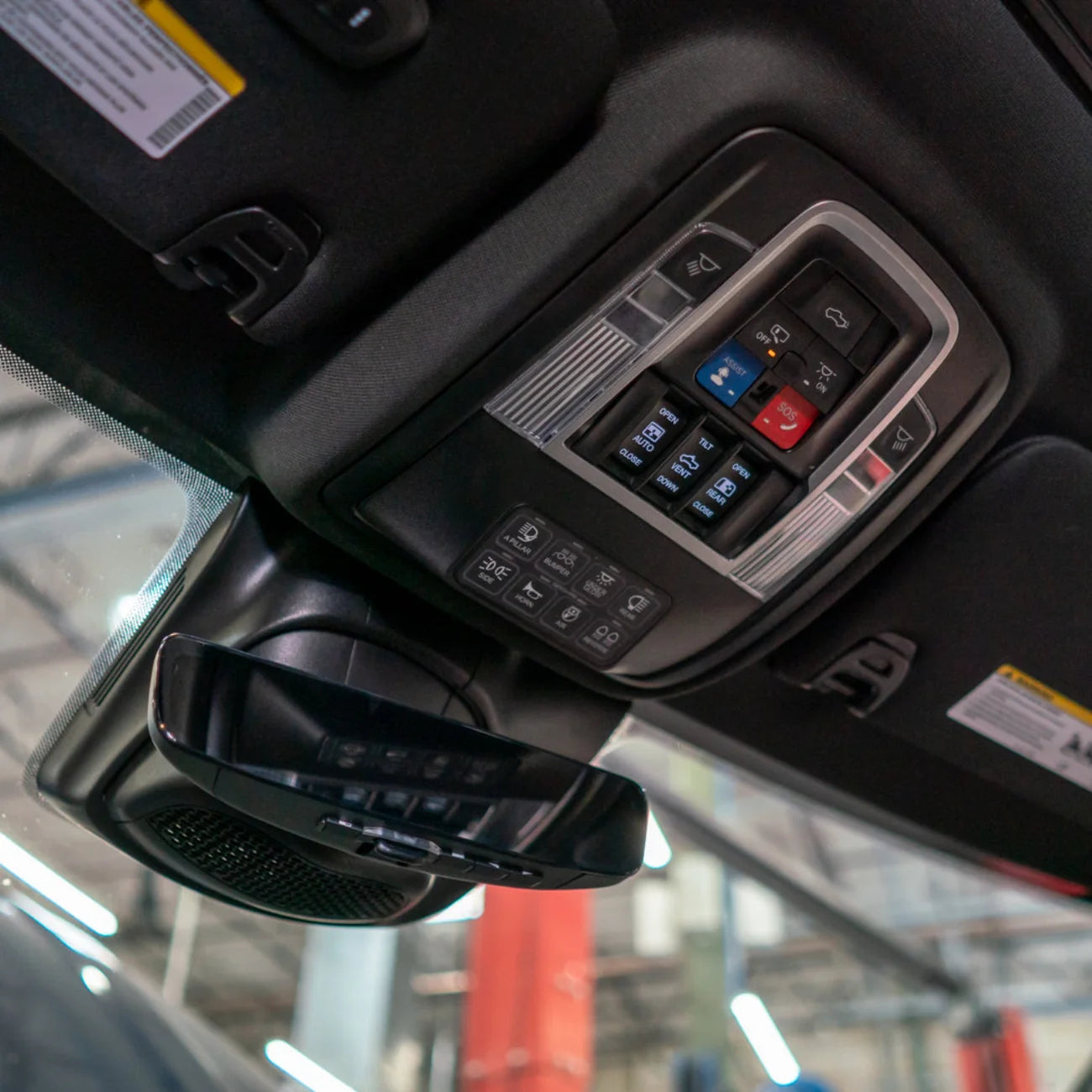

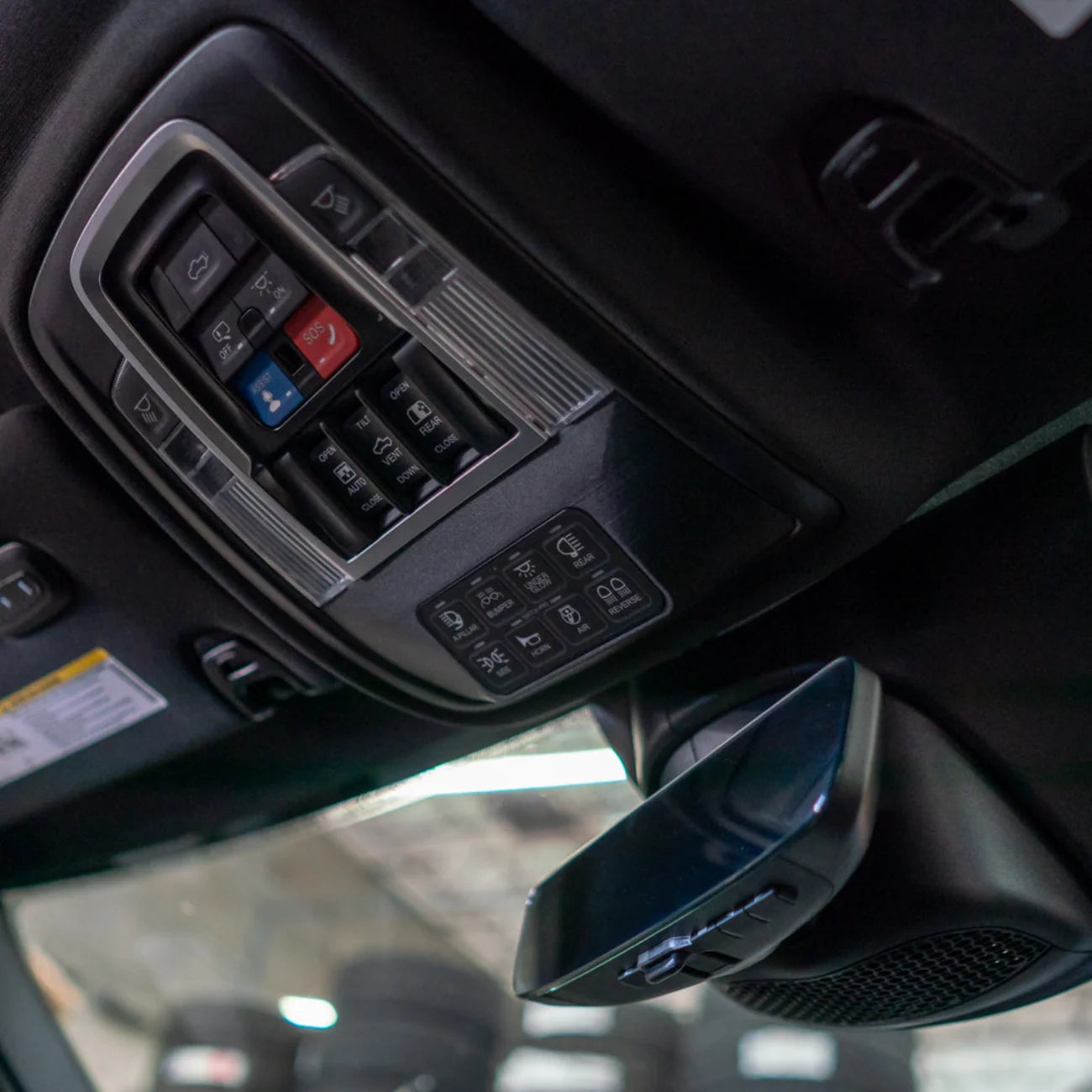

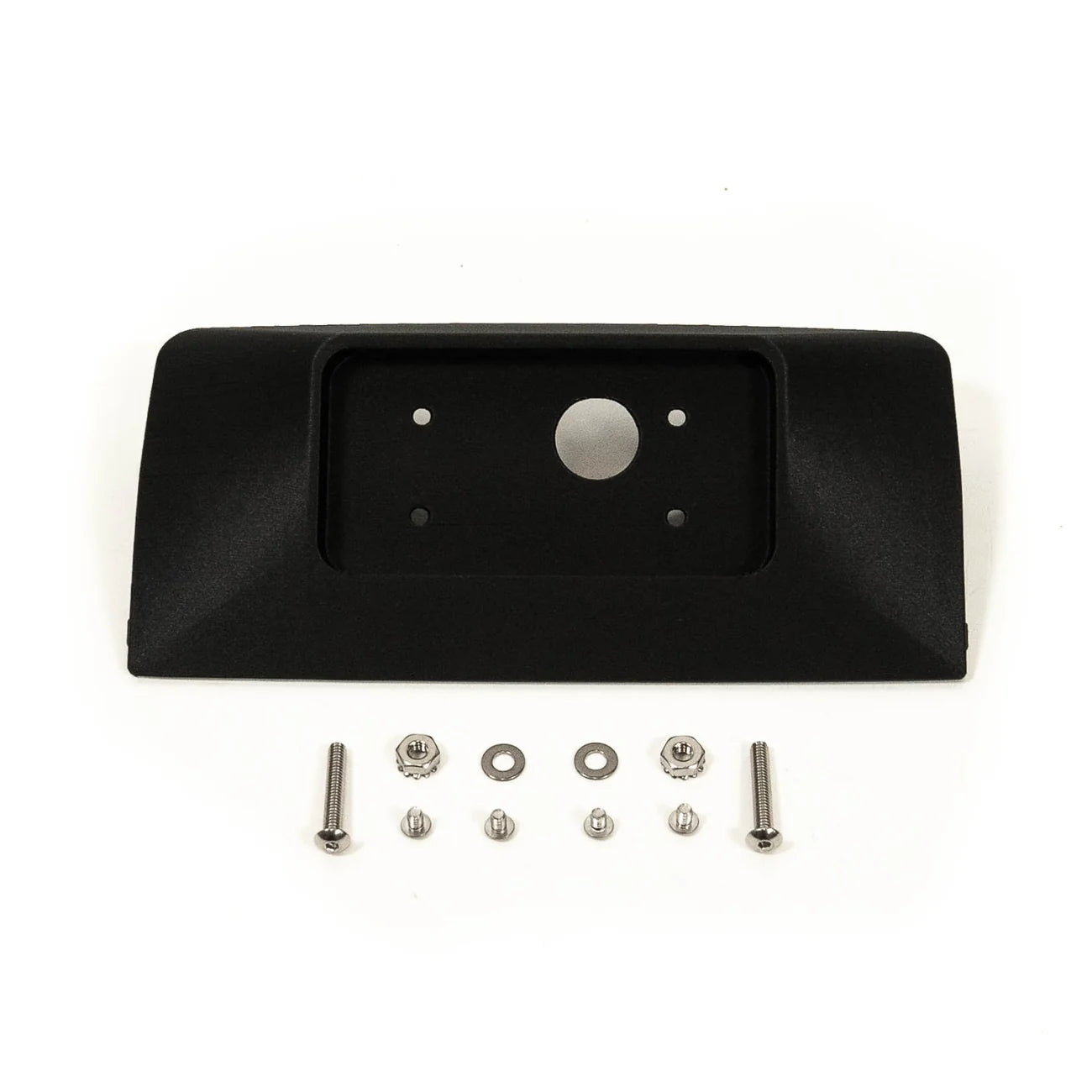

This SDHQ Built keypad mount is 3D printed giving this keypad mount a direct from the factory level of fitment and quality.
INTERIOR MOUNT KEY FEATURES:
- 3D CAD Designed for a precise fit and finish.
- Fits both non-upfitters and upfitters overhead consoles
- Fits: 2019+ Ram 2500/3500
- Fitments allows for 9100 and RCR12
- Direct replacement of overhead sunglass holder.
- Drilling ¾” hole required to route switch pro wire
POWER MODULE MOUNT KEY FEATURES:
- Precision Engineering: Utilizing 3D CAD design, the mount is engineered to fit perfectly within the specified models of RAM trucks.
- Durable Construction: Laser cut from 1/8" Aluminum; reflective of SDHQ Built's reputation, the mount is constructed with a focus on quality, fit, and finish.
- Ease of Installation: The mount is designed to attach to existing factory mounting points under the hood in front of the battery, which simplifies the installation process and does not require any drilling or modification of the vehicle.
- Compatibility: It is built to accommodate the Switch-Pros SP-9100 or RCR-Force 12 Power Module components, ensuring a snug and secure fit.
- Aesthetics: With an anodized black finish, the mount blends seamlessly with the engine bay's appearance and resists corrosion.
- Hardware Inclusion: The mounting system utilizes Switch Pros' own hardware for mounting the power module, ensuring a perfect match.
TECHNICAL INFORMATION:
- Component Requirement: Note that the SDHQ mount does not come with the Switch-Pros components; the SP-9100 or RCR-Force-12 must be purchased separately by the customer.
- No Cutting/Drilling: Since the mount uses factory mounting points, there is no need for cutting or drilling, making this a non-invasive addition to your vehicle.
SWITCH PROS SP9100 FEATURES
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOs or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting on power module
SPECIFICATIONS
- 125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H
- Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
PROGRAMMING & OTHER FEATURES
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module

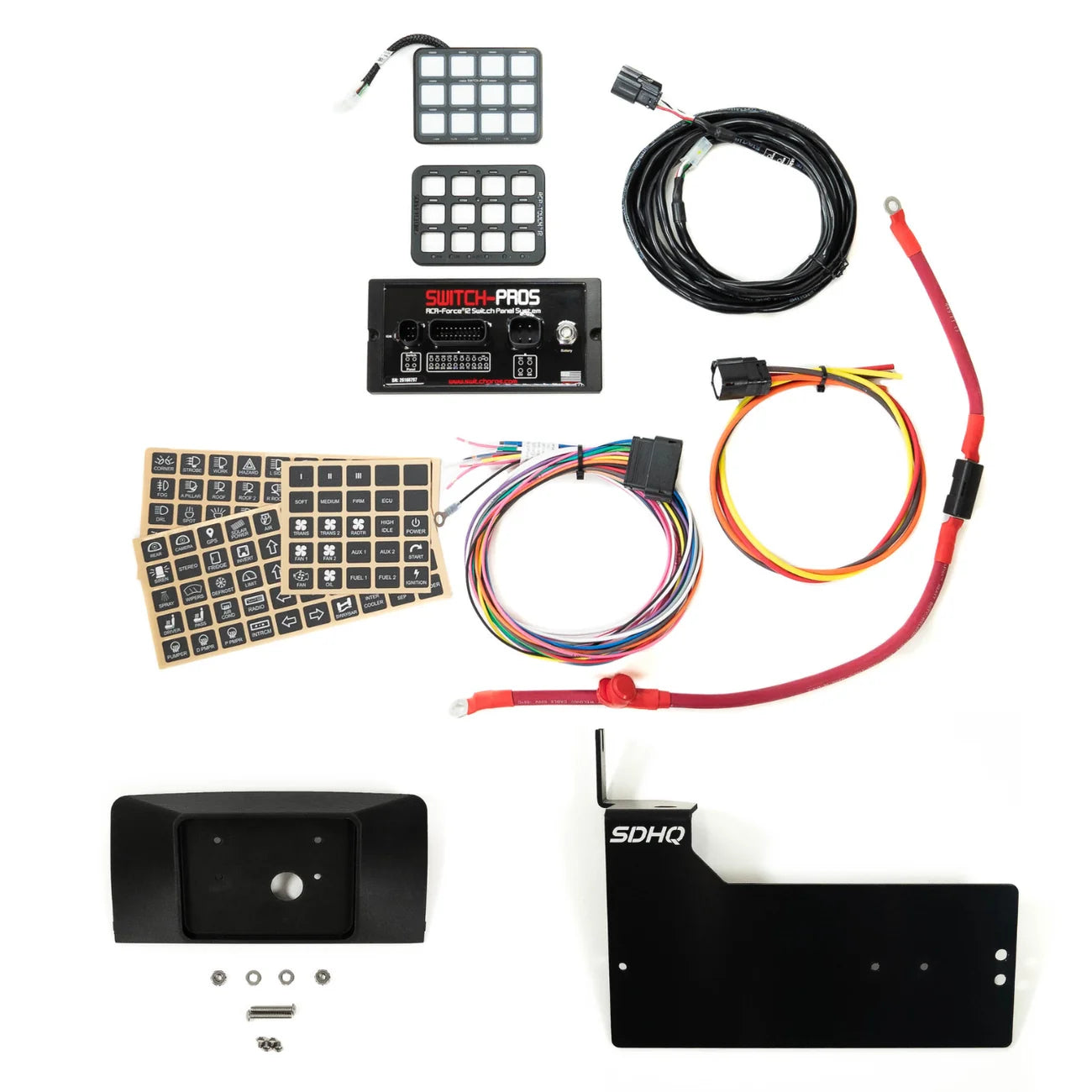

WHAT’S INCLUDED?
- Switch Panel and Power Module
- RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide
